Buy Aluminium Coil Companies, Company

Aluminum Coil is a continuous rolled aluminum product wound into a coil shape, which is widely recognized as a foundational material in various industries due to its efficient processing performance, excellent material properties, and flexible application adaptability. It serves as the primary raw material for manufacturing aluminum sheets, aluminum foils, aluminum profiles, and various stamped or formed parts, playing an irreplaceable role in construction, packaging, automotive, electronics, and other fields.Â

Send Inquiry

Product Description

Classification by Alloy Series

Aluminum Coils are categorized into different types based on the alloy composition, each with distinct properties tailored to specific application scenarios. The most commonly used alloy series include:

Alloy Series	Key Alloying Elements	Core Properties	Typical Applications
1000 Series (Pure Aluminum, 1100, 1050, 1060, 1070)	Aluminum ≥ 99.0%	Excellent corrosion resistance, high thermal/electrical conductivity, good ductility	Food packaging, heat exchangers, decorative materials
3000 Series (Al-Mn Alloy, 3003, 3004, 3104, 3105)	Manganese (1.0%-1.5%)	Balanced strength and formability, enhanced corrosion resistance vs pure aluminum	Kitchenware, automotive parts, construction panels
5000 Series (Al-Mg Alloy, 5005, 5052, 5754, 5182, 5083)	Magnesium (1.0%-5.0%)	High strength, superior corrosion resistance (especially seawater), weldable	Marine components, pressure vessels, architectural cladding
8000 Series (Al-Li Alloy, 8011, 8006, 8021)	Lithium, trace elements	Lightweight, high strength-to-weight ratio	Aerospace components, high-end automotive parts

Our Specifications

Aluminum Coil specifications are defined by thickness, width, coil weight, and inner diameter, with a wide range of options to meet industrial production needs. The typical specification ranges include:

Thickness

0.2mm - 10.0mm (thinner coils ≤ 0.2mm are often called "foil coils")

Width

800mm - 2500mm (custom widths available via slitting)

Coil Weight

500kg - 5000kg (varies by thickness and width to facilitate handling)

Inner Diameter

505mm usual (standard sizes for compatibility with rolling and processing equipment)

Mechanical Properties (Typical Alloy: 3003 Aluminum Coil)

Mechanical properties of Aluminum Coil are significantly influenced by processing temper (heat treatment or cold working state). Taking 3003 alloy (the most widely used aluminum coil material) as an example, its key mechanical indicators are shown below:

Temper	Tensile Strength (σb, MPa)	Yield Strength (σ0.2, MPa)	Elongation (δ, %)	Application Note
O (Annealed)	90 - 130	≤ 40	≥ 25	Complex forming (deep drawing, stamping)
H14 (Semi-Hard)	130 - 180	110 - 150	≥ 5	Structural parts with moderate strength
H18 (Full Hard)	≥ 180	≥ 160	≥ 3	Load-bearing components without secondary forming

Core Characteristics

Efficient Processing: The coil form allows continuous production processes such as slitting, stamping, and rolling, reducing material waste and improving production efficiency compared to discrete sheet materials.
Lightweight Advantage: With a density of approximately 2.7g/cm³ (about 1/3 of steel), it reduces the weight of end products, which is crucial for automotive lightweighting and architectural load reduction.
Superior Corrosion Resistance: Aluminum naturally forms a dense oxide film on the surface, preventing further oxidation. Alloying elements (e.g., manganese, magnesium) can further enhance corrosion resistance for harsh environments.
Excellent Thermal & Electrical Conductivity: Superior to most metals except copper, making it ideal for heat exchangers, radiators, and electrical conductors.
Strong Surface Treatment Adaptability: Compatible with anodizing, powder coating, electrophoresis, polishing, and printing, meeting both decorative and functional requirements (e.g., wear resistance, insulation).

Key Application Fields

Industry	Specific Applications	Preferred Alloy Series
Construction	Roofing, wall cladding, ceiling panels, decorative strips, window frames	3000 Series, 5000 Series
Packaging	Food cans, beverage cans, foil containers, flexible packaging (aluminum-plastic composite)	1000 Series, 3000 Series
Automotive	Body panels, heat shields, radiators, interior decorative parts	3000 Series, 5000 Series, 8000 Series
Electronics	Heat sinks for electronic devices, capacitor casings, cable sheaths	1000 Series, 3000 Series
Industrial Equipment	Heat exchanger fins, chemical storage tank liners, conveyor belts	3000 Series, 5000 Series

Quality Control & Storage Notes

Quality Control Indicators: Thickness tolerance (±0.02mm for precision coils), surface quality (no scratches, oil stains, or oxidation spots), flatness (to avoid warping during processing), and mechanical property consistency (batch sampling inspection).
Storage Recommendations: Store in a dry, well-ventilated warehouse to prevent moisture-induced oxidation; place coils on dedicated supports to avoid deformation; avoid direct contact with corrosive substances; cover with waterproof and dustproof materials if stored outdoors temporarily.

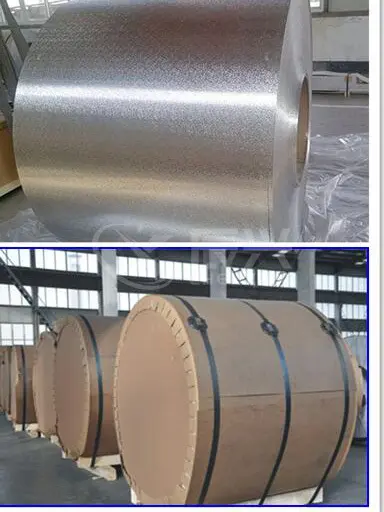

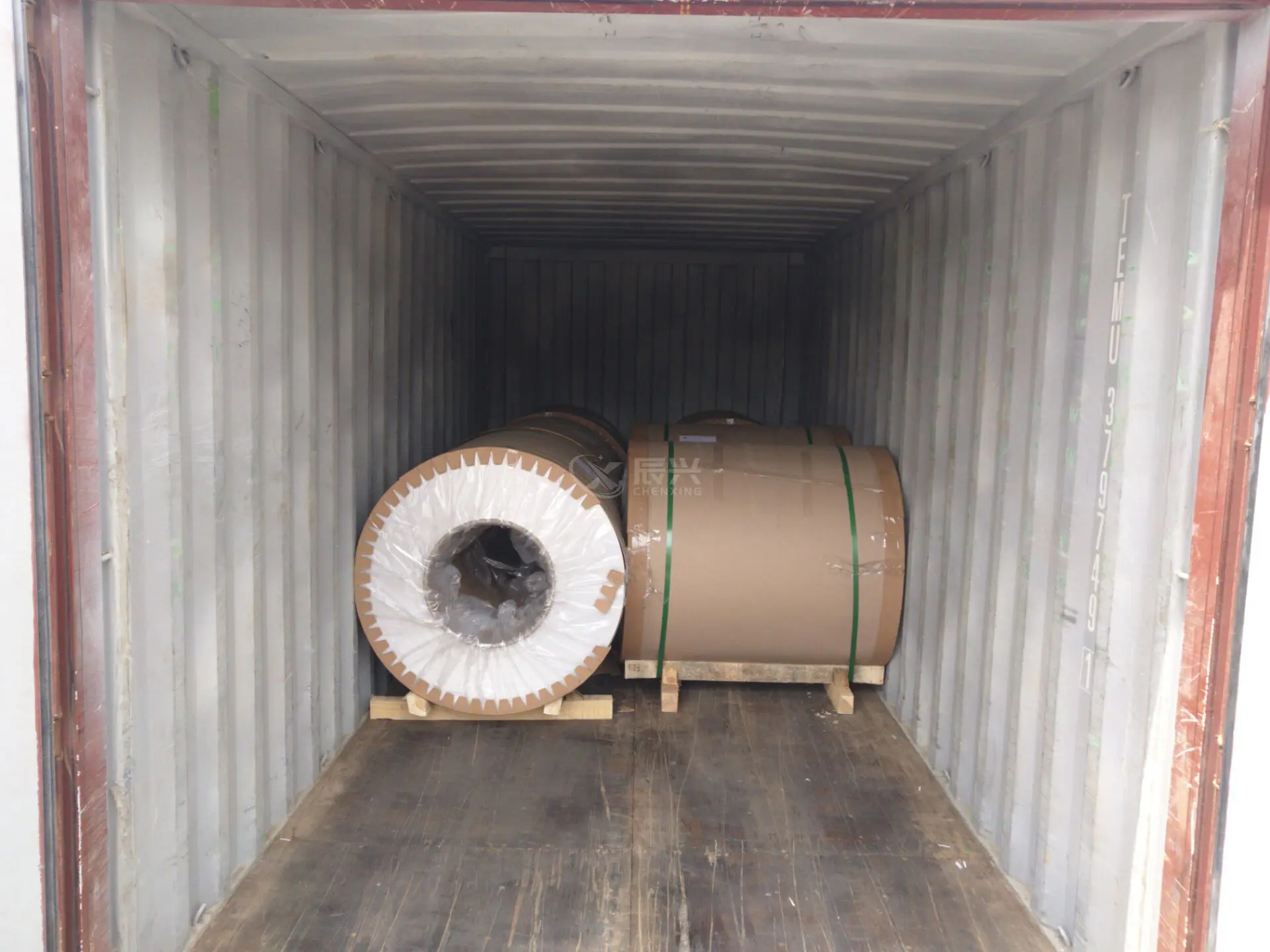

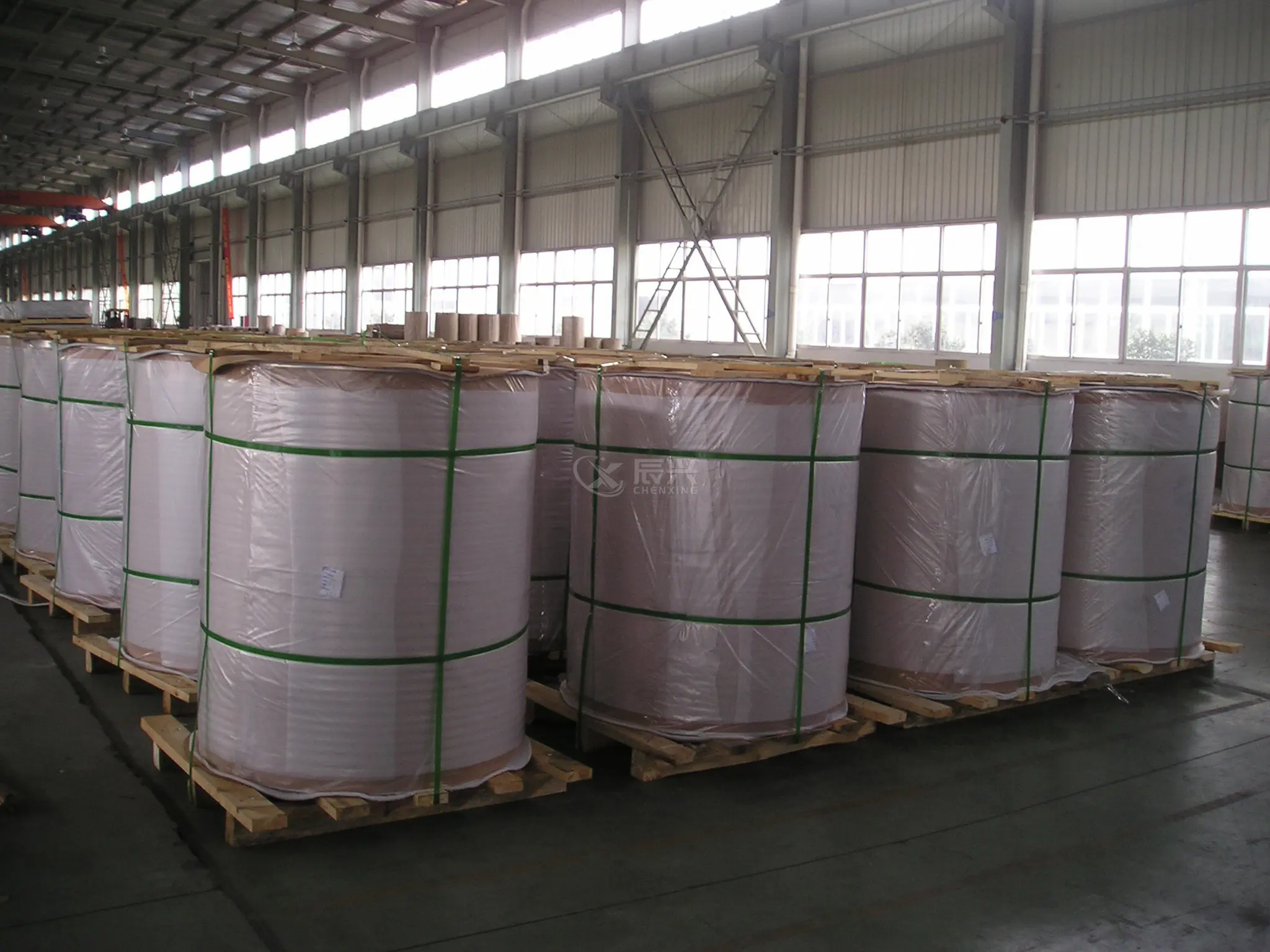

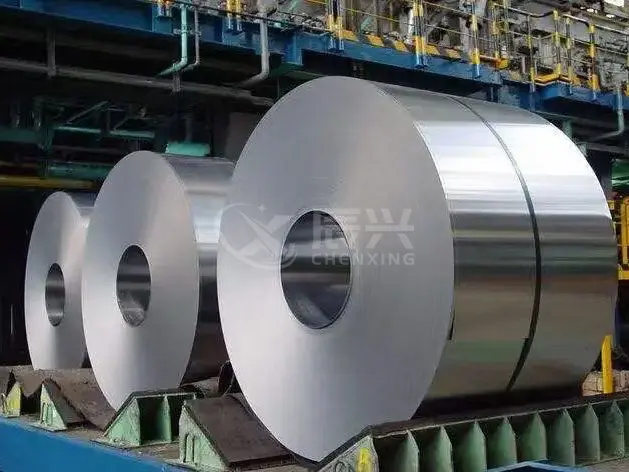

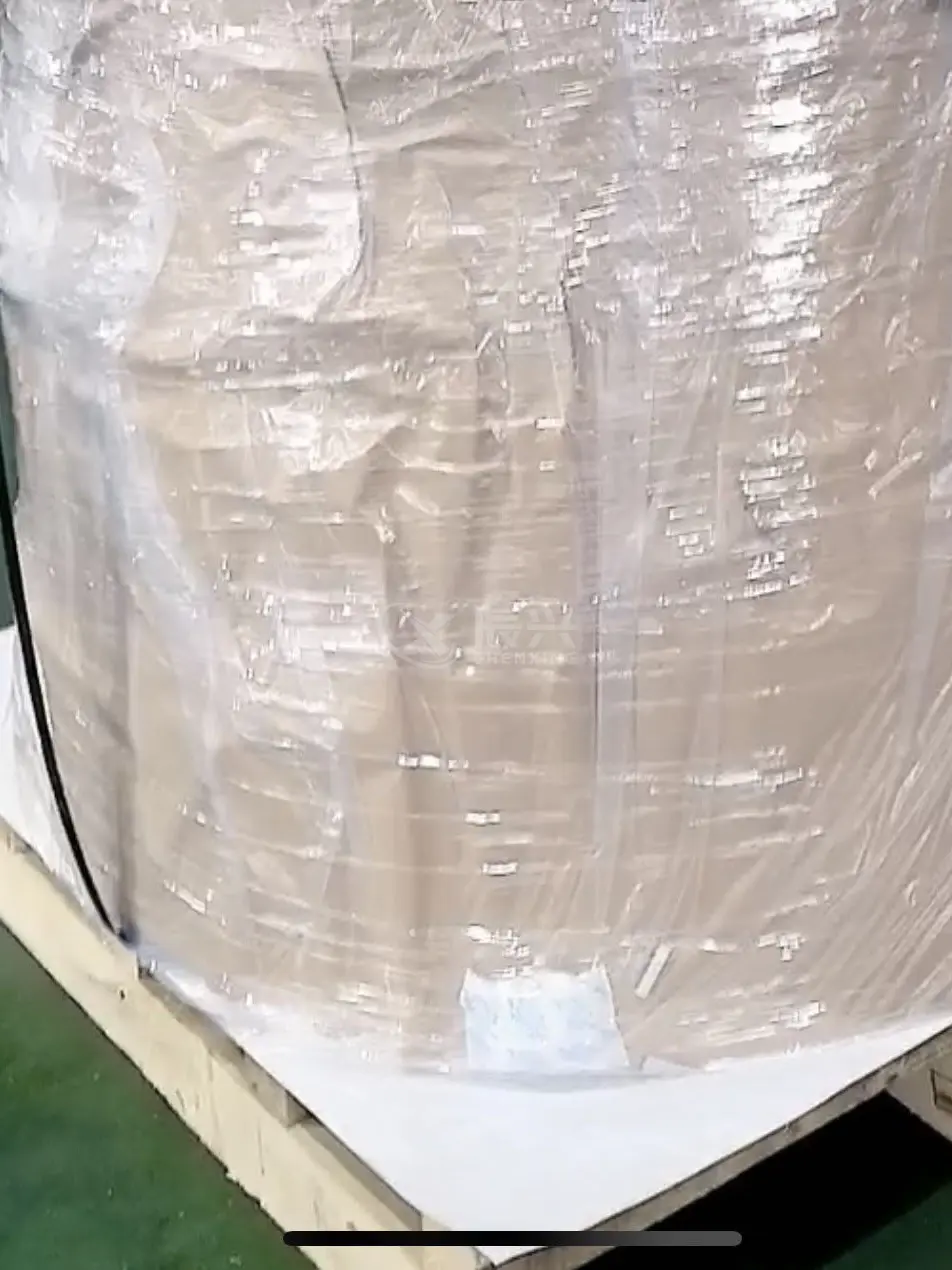

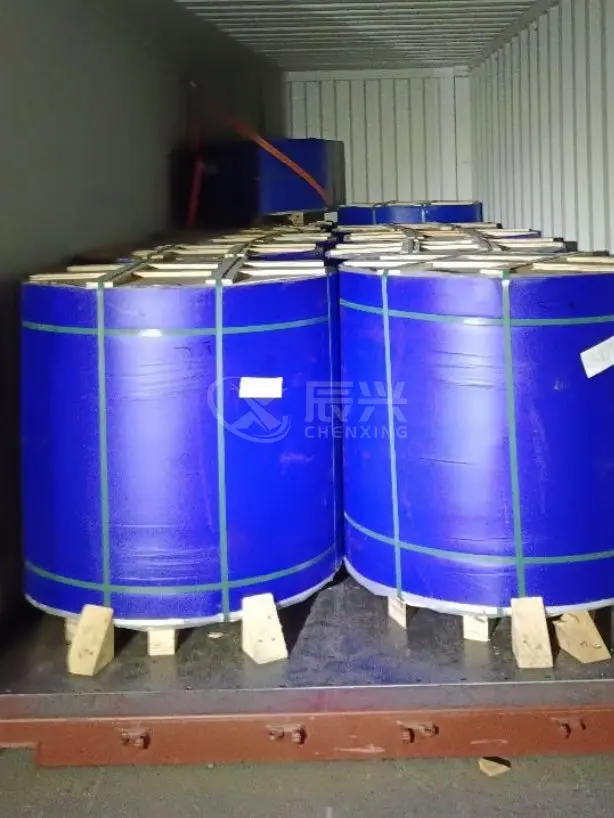

Detail Images

Detail1

Detail2

Detail3

Detail1

Detail2

Detail3

Frequently Asked Questions

What are the key alloy series of Aluminum Coils and their primary uses?

Aluminum coils are categorized based on their alloy elements. The 1000 series (pure aluminum) offers high thermal/electrical conductivity and is ideal for food packaging and heat exchangers. The 3000 series (Al-Mn) provides balanced strength and formability for kitchenware and construction panels. The 5000 series (Al-Mg) offers superior corrosion resistance (especially in seawater) for marine environments. The 8000 series (Al-Li) features a high strength-to-weight ratio suited for aerospace.

What are the standard specifications available for Aluminum Coils?

Standard thickness ranges from 0.2mm to 10.0mm (coils ≤ 0.2mm are categorized as foil coils). The standard width ranges from 800mm to 2500mm, with custom slitting available. Coil weights vary between 500kg and 5000kg depending on handling equipment capacities. The standard inner diameter is typically 505mm.

How does the temper of 3003 Aluminum Coil affect its mechanical properties?

The temper determines structural properties. The O (Annealed) temper has lower strength (90-130 MPa tensile strength) but high ductility (≥ 25% elongation), making it suitable for deep drawing or stamping. The H14 (Semi-Hard) temper balances strength (130-180 MPa) and moderate forming potential. The H18 (Full Hard) temper offers maximum strength (≥ 180 MPa) but lower elongation (≥ 3%), which is ideal for load-bearing structures.

What are the benefits of choosing coil-form aluminum over sheet-form?

The coil structure supports highly efficient, continuous automated feeding during industrial manufacturing processes like slitting, stamping, and roll forming. This reduces material handling time, decreases manufacturing steps, and minimizes scrap metal waste compared to using precut sheets.

What storage conditions prevent the oxidation of Aluminum Coils?

Aluminum coils must be stored in dry, well-ventilated indoor warehouses. They should be set on specialized cradles or supports to prevent flat spots or physical deformation. It is essential to prevent moisture accumulation and contact with corrosive chemicals. Outdoor storage should be temporary and require robust waterproof and dustproof covers.
