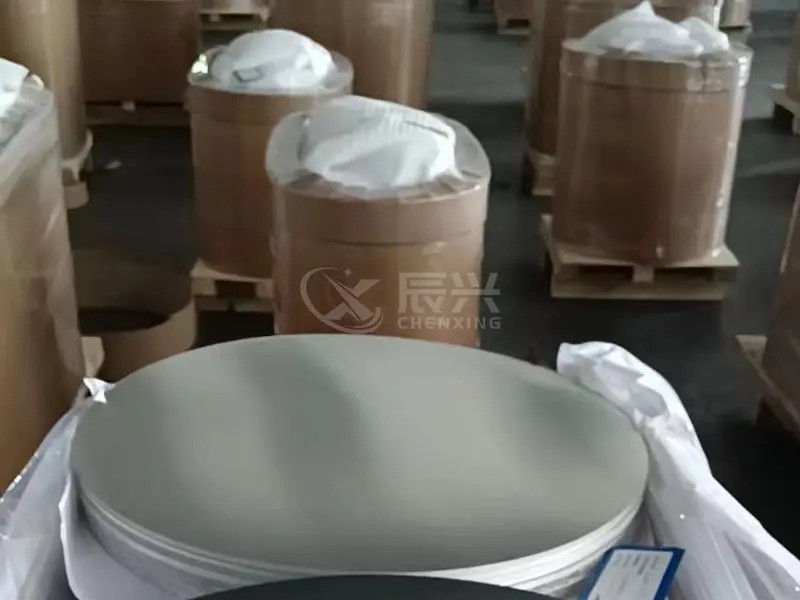

Buy 3003 Aluminium Circle Manufacturers, Manufacturer

3003 Aluminium Circle,Hot Rolled Quality/Deep Drawing Quality(DC) a circular sheet product processed from 3003 aluminium alloy, is widely utilized across numerous industries due to its excellent comprehensive performance.It is a core material for deep-drawn pots, pressure cookers, rice cooker inner liners, and other kitchen utensils, benefiting from its formability and food safety.

 Below is a detailed overview of this product:
1. Superior Formability: It exhibits low anisotropy, enabling smooth deep drawing, stamping, and other forming operations without easy cracking, which is crucial for manufacturing complex-shaped products.
2. Balanced Mechanical Performance: It has a high strength-to-weight ratio, providing sufficient structural support while maintaining the lightweight advantage of aluminium.
3. Excellent Thermal Conductivity: Uniform heat diffusion ensures consistent heating or cooling performance, making it suitable for heat-related applications.
4. Good Surface Treatment Adaptability: It can undergo various surface treatments such as enameling, Teflon coating, anodizing, and powder coating to enhance corrosion resistance and aesthetic appeal.
5. Strong Corrosion Resistance: The presence of manganese improves its resistance to atmospheric corrosion and chemical erosion. Additionally, its surface is smooth with no obvious scratches, oil stains, or other defects.

Product Description

Product Specifications

Product Name Typical Alloys Material Status (Temper) Thickness (mm) Diameter (mm) Type

3003 Aluminum Circle

3003 Aluminum Disc

3003 O, H12, H14, H16, H18, H22, H24, H26, H32, etc. 0.25 - 6.0 100 - 1500 CC & DC
Typical Applications: Kitchenware Manufacturing, Construction Industry, Electronics & Lighting Industry, Packaging Industry.

Technical Details

1. Chemical Composition

3003 aluminum alloy is manganese-based with balanced mechanical properties and high corrosion resistance. Weight percentage composition details:

  • Aluminium (Al): 96.8% - 99.0%
  • Manganese (Mn): 1.0% - 1.5%
  • Copper (Cu): 0.05% - 0.20%
  • Iron (Fe): ≤ 0.70%
  • Silicon (Si): ≤ 0.60%
  • Zinc (Zn): ≤ 0.10%
  • Others (Total): ≤ 0.15%

2. Common Specifications

Highly flexible dimensions designed to meet diverse application requirements:

  • Standard Thickness Range: 0.13mm to 6.5mm
  • Standard Diameter Range: 80mm to 1000mm
  • Customization: Tailored thickness and diameter tolerances available for precision component engineering projects.

3. Mechanical Properties

Mechanical features alter based on standard processing states (hardness levels):

  • O State (Annealed): Tensile strength of 90MPa - 130MPa, elongation of ~25%. High ductility, ideal for deep drawing and complex forming.
  • H14 State (Strain Hardened/Partially Annealed): Tensile strength of 130MPa - 180MPa, elongation of ~5%. Delivers higher stability and structure support.

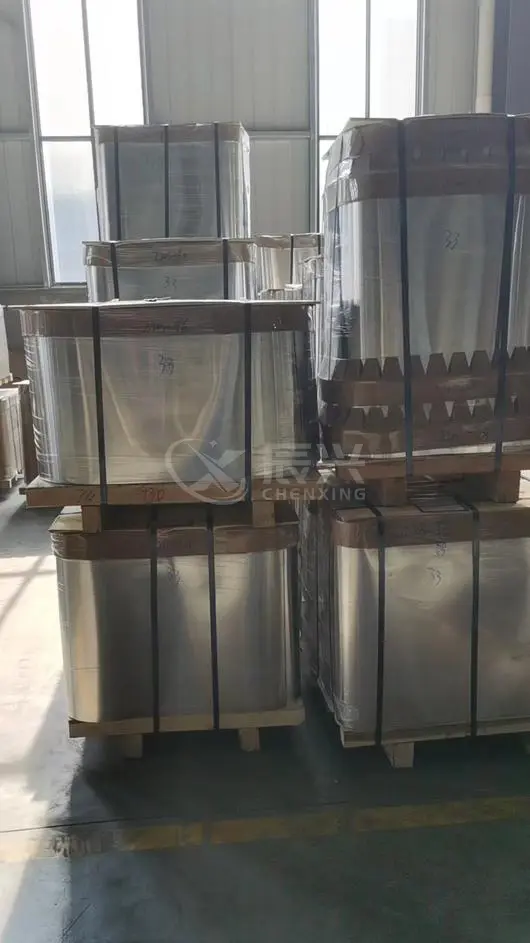

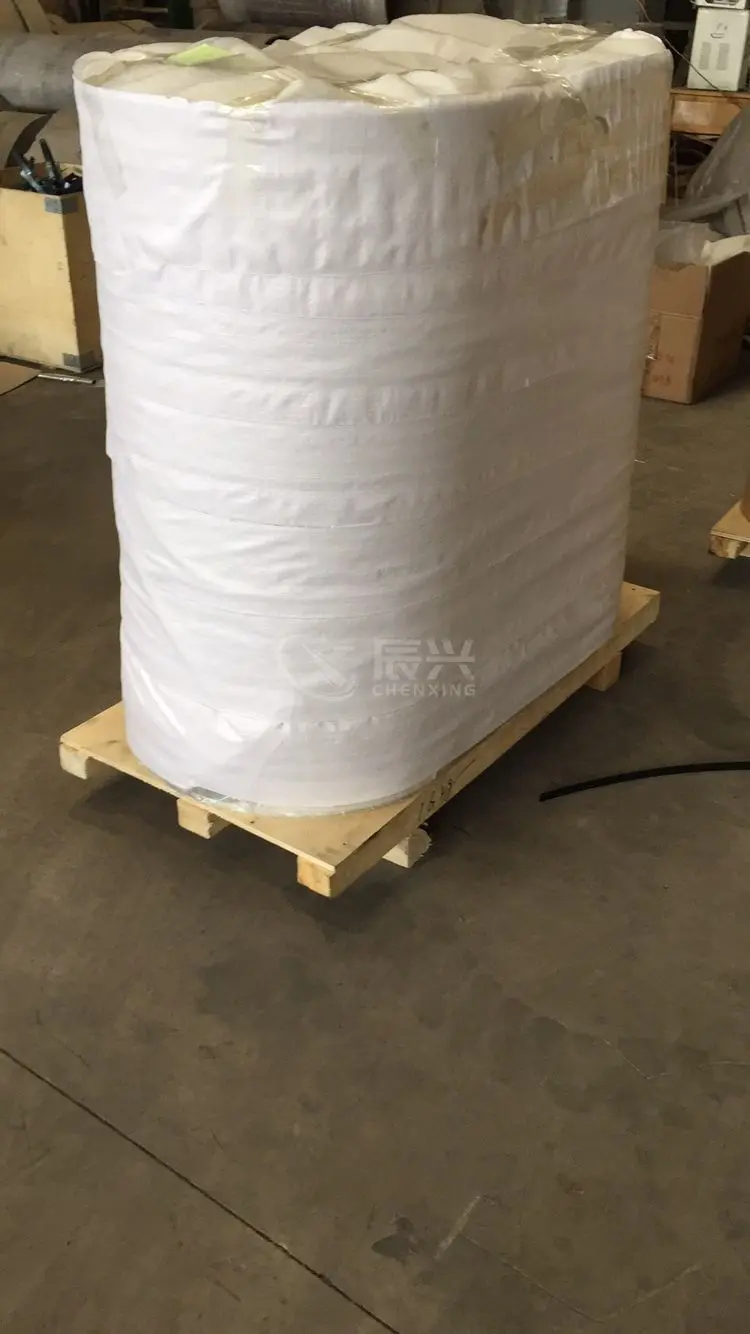

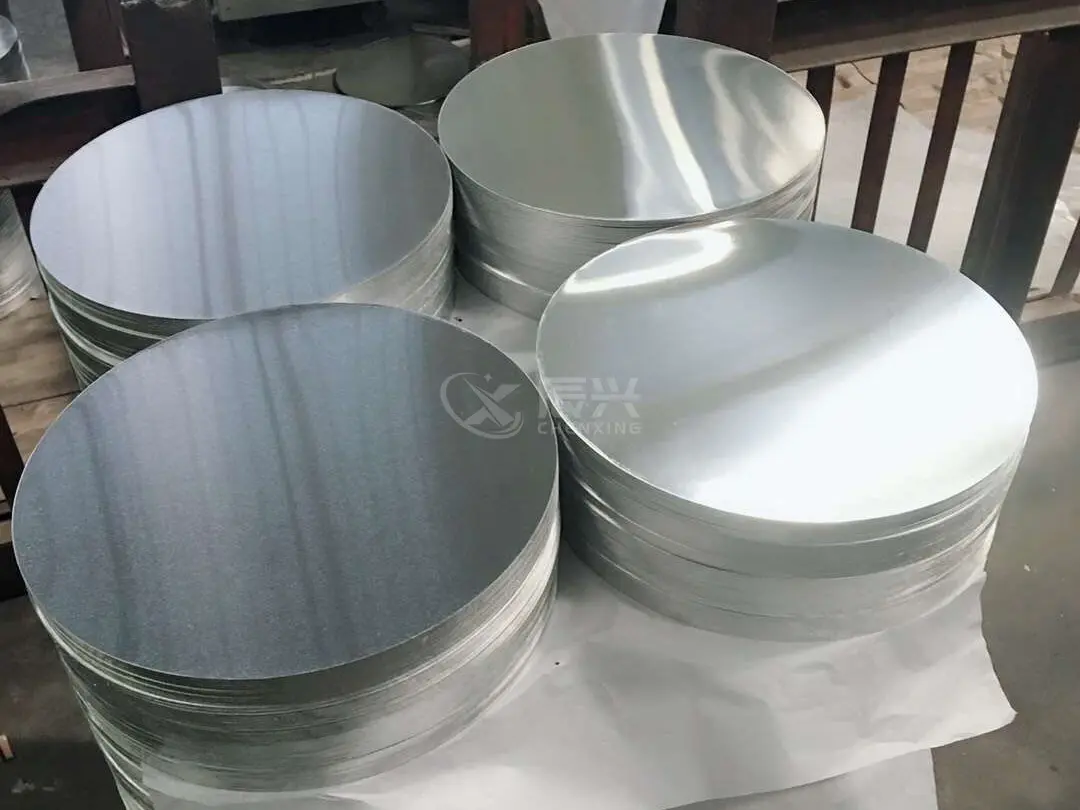

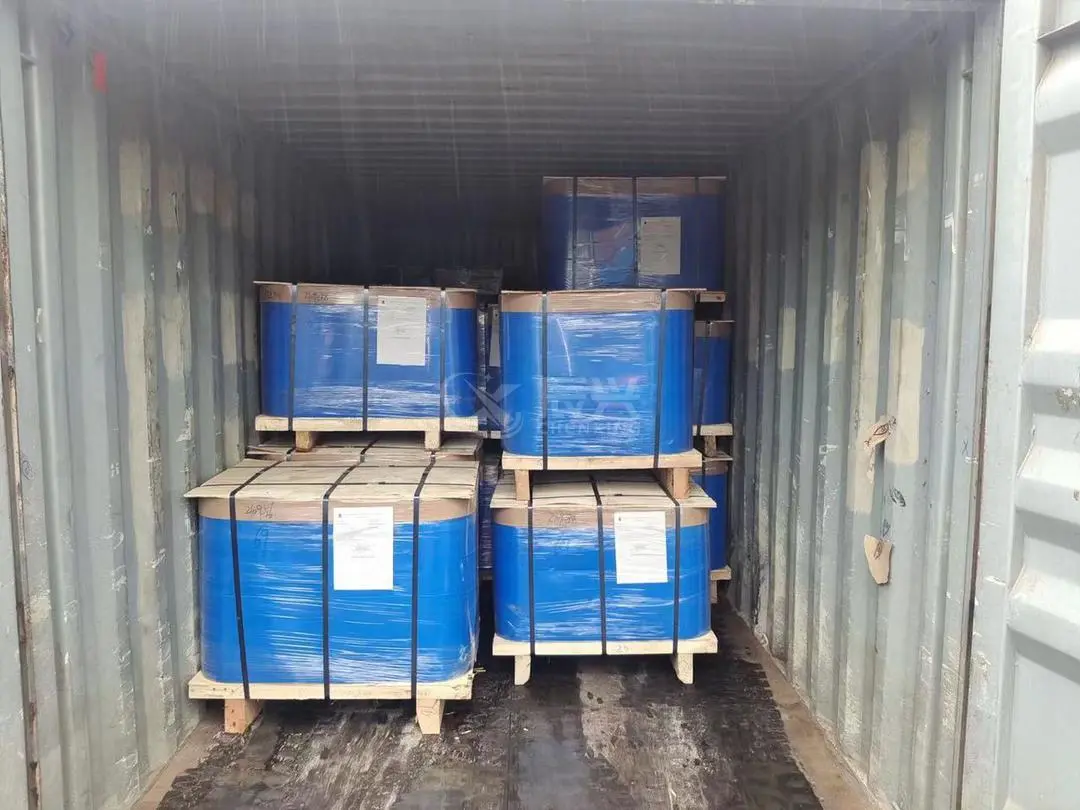

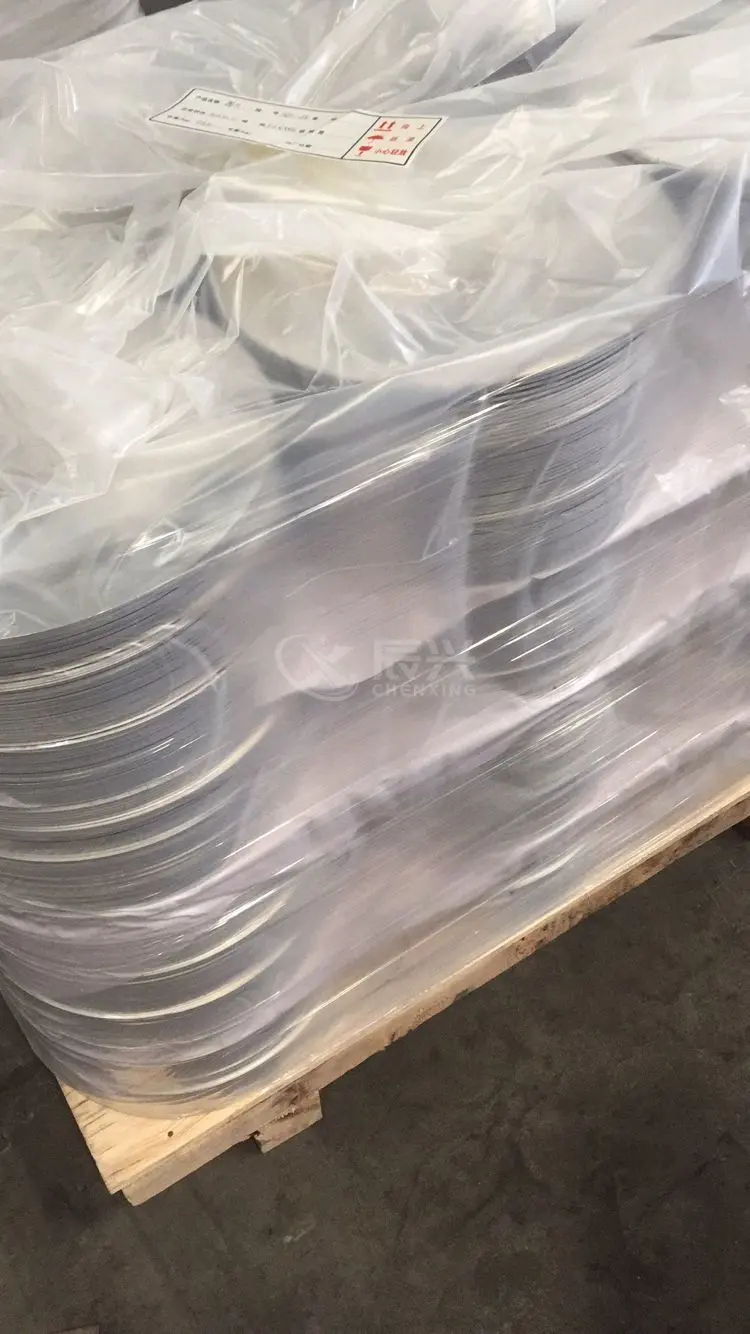

Product Gallery

Frequently Asked Questions (FAQ)

What are the typical applications of 3003 Aluminum Circles/Discs?
3003 Aluminum Circles and Discs are widely used in kitchenware manufacturing (such as pots and pans), the construction industry, the electronics & lighting industry, and various packaging applications.
What is the chemical composition of 3003 aluminum alloy?
3003 is a manganese-alloyed aluminum. Its weight composition consists of Aluminum (Al) 96.8% - 99.0%, Manganese (Mn) 1.0% - 1.5%, Copper (Cu) 0.05% - 0.20%, Iron (Fe) ≤ 0.70%, Silicon (Si) ≤ 0.60%, and Zinc (Zn) ≤ 0.10%.
What is the difference between O state and H14 state tempers?
The O state (fully annealed) offers high ductility with tensile strength of 90-130MPa and elongation of ~25%, making it ideal for deep drawing. The H14 state (strain hardened) provides higher tensile strength of 130-180MPa and elongation of ~5%, offering better structural stability.
What are the standard thickness and diameter ranges?
Typically, the thickness ranges from 0.13mm to 6.5mm, and the diameter spans from 80mm to 1000mm. Customized specifications can also be manufactured depending on specific requirements.
What manufacturing processes are supported?
We support both CC (Continuous Casting) and DC (Direct Casting) processing methods, which allow us to supply aluminum discs suitable for standard forming as well as deep-drawing processes.
